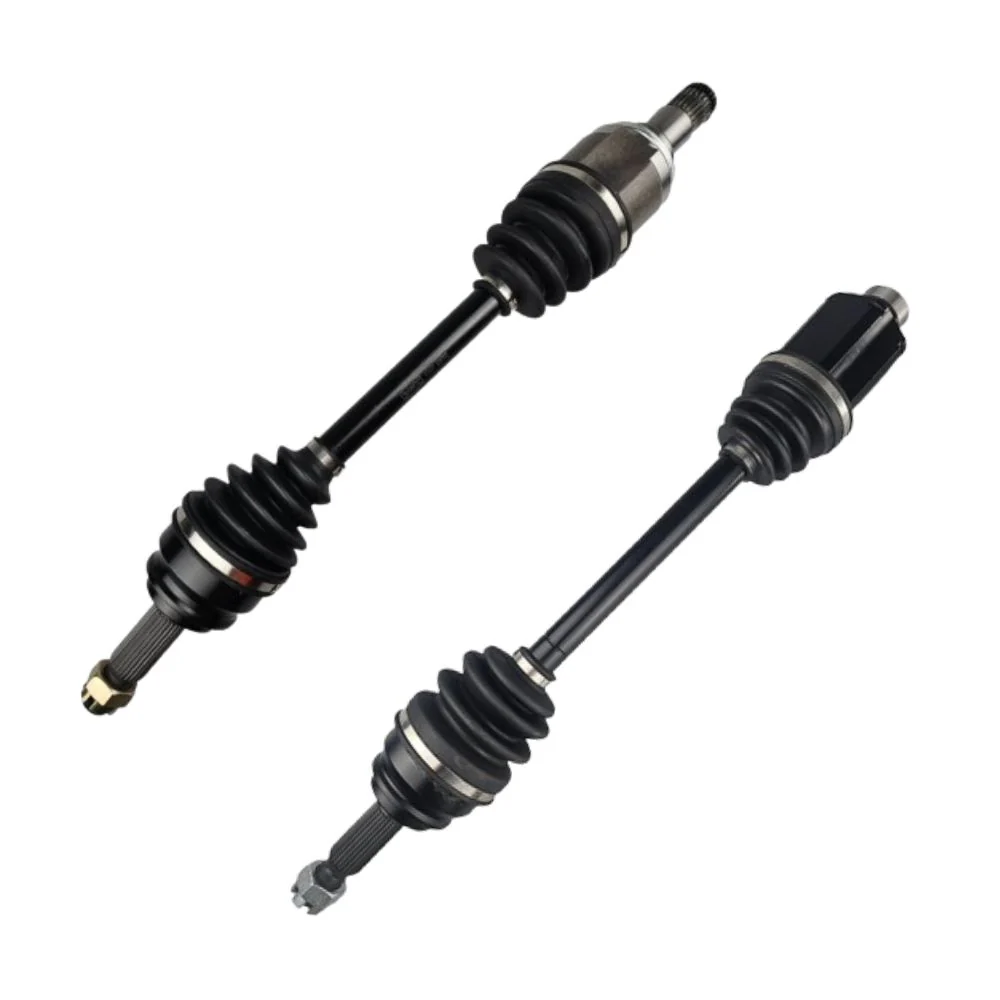

2 x CV Axle Drive Shafts for Mitsubishi Outlander ZH 2.4L 4B12 Manual 2010-2012

CV Axle Drive Shafts - Pair Right & Left-Hand Side Manual FWD



Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless-steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mitsubishi Outlander ZH 2.4L 4B12 FWD MN (08/2010 - 10/2012)
  Sub-Models Include LS, ACTIV, LS 30TH ANNIVERSARY, LS LIMITED EDITION, PLATINUM EDITION


Sizing and Specifications

Right

• Length (Compressed): 620mm
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 28+2Blank

Left

• Length : 634mm
• Spline Count Outer/Wheel Side: 28T

• Spline Count Inner/Diff Side: 24T
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Seal ID - Outer/Wheel Side: 59.5mm
• Seal ID - Inner/Diff Side: 50mm
• Hub Nut Style: M22 x 1.5




What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
