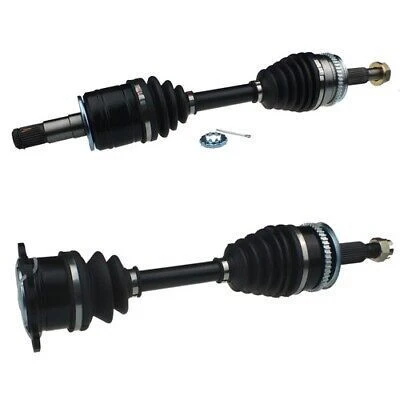

Pair CV Axle Drive Shaft - Left & Right Hand Side Front Automatic/Manual 4WD

***Check Length. Left Hand Side is 603mm, if you need length 593mm use CVA1018-CVA1484***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mitsubishi Triton MN 2.5L, 4D56T 4WD (09/2009-04/2015)
  Sub-Model Includes GL-X, GLX-R, ACTIV
• Mitsubishi Triton ML 3.2L, 3.5L 4M41T, 6G74 4WD (07/2006-08/2009)
  Sub-Model Includes GLS, GLX, GLX-R, VR

Sizing and Specifications

Left Hand CVA1027

• Length (Compressed): 603mm
• Diff Side Spline: 28T
• Wheel Side Spline: 30T
• ABS Ring: 47T
• Diff Seal Size: 32.0mm
• Wheel Seal Size: 60.0mm

Right Hand CVA1018

• Length (Compressed): 486.5mm
• Spline Count - Outer/Wheel Side: 30T

• Inboard Joint Type: Bolt on 4-Bolt
• Inboard Joint Type: Ball
• ABS Ring Teeth: 487
• Nut Type: M22 x 1.5
• PCD Mounting Bolt Holes (Inner Joint): 110.5mm
• Flange Outer Diameter:132mm



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
